Full Hydraulic Cable Drum Trailers AUTO15

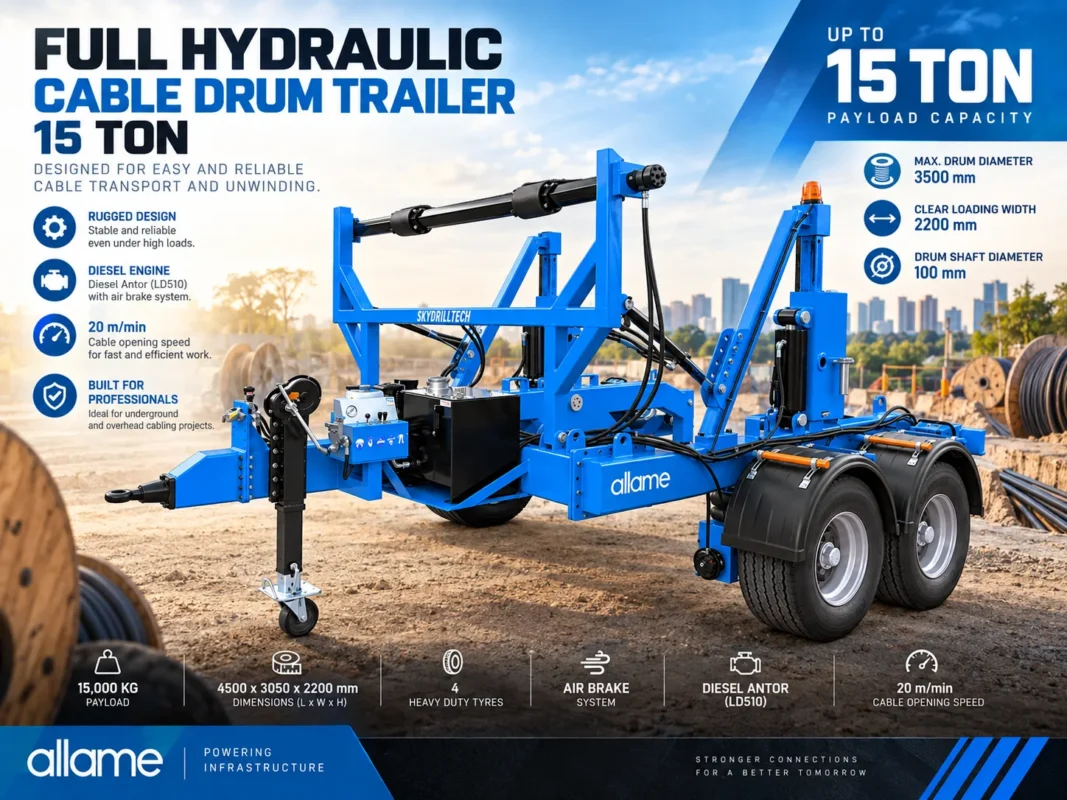

Heavy-Duty 15 Ton Cable Drum Trailer for Large Cable Reels
The Full Hydraulic Cable Drum Trailer 15 Ton is designed for transporting, lifting and unwinding large cable drums on demanding power and telecommunications projects.
With a 15,000 kg payload capacity, the FHCDT-15 provides a strong and reliable solution for handling heavy cable reels. Its full hydraulic drum handling system makes loading and positioning large drums easier, while the heavy-duty chassis provides stability during operation.
The trailer can handle cable drums up to 3,500 mm in diameter and offers a 2,200 mm clear loading width. A Diesel Antor LD510 engine supplies power for the hydraulic system, while the air brake system supports controlled transportation.
With a cable opening speed of up to 20 m/min, the FHCDT-15 is suitable for professional cable laying contractors working on large-scale infrastructure projects.
Technicial Specifications
| Purchase Number | FHCDT-15 |
|---|---|
| Length (mm) | 4500 |
| Width (mm) | 3050 |
| Height (mm) | 2200 |
| Empty Weight (kg) | 2350 |
| Payload (kg) | 15000 |
| Total Weight (kg) | 17350 |

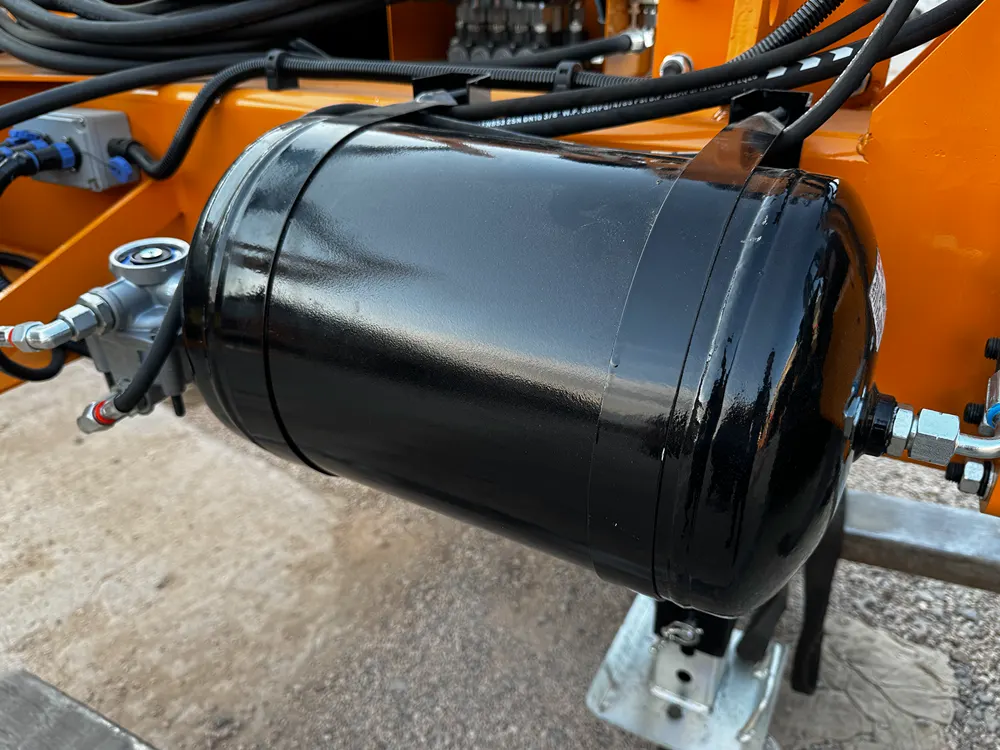

| Brake | Air Brake |
| Max. Drum Diameter (mm) | 3500 |
| Clear Loading Width (mm) | 2200 |
| Drum Shaft Diameter | 100 mm |
| Tyres | 4 |
| Tyre Size | 1000 x 22.5 |
| Cable Opening Speed | 20 m/min |
| Engine | Diesel Antor (LD510) |

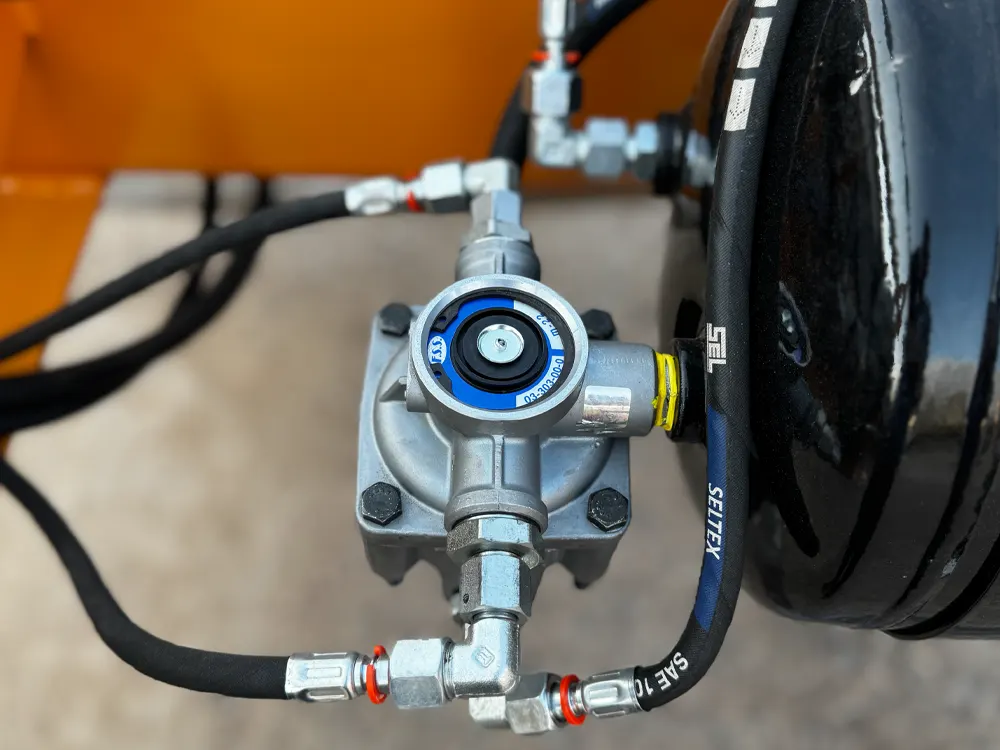

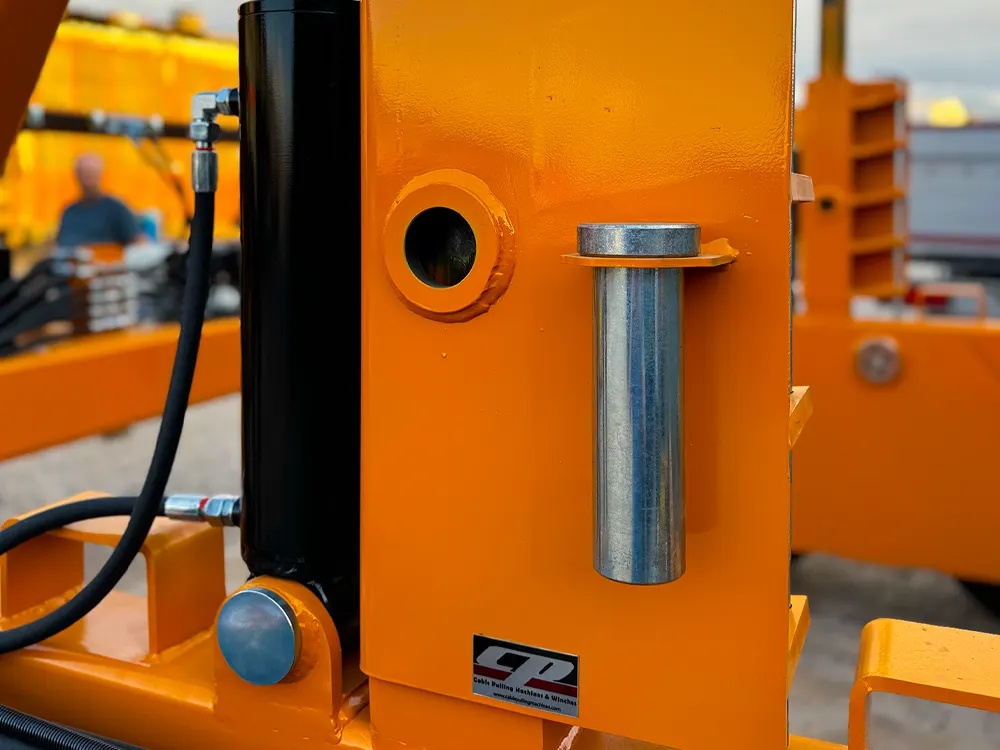

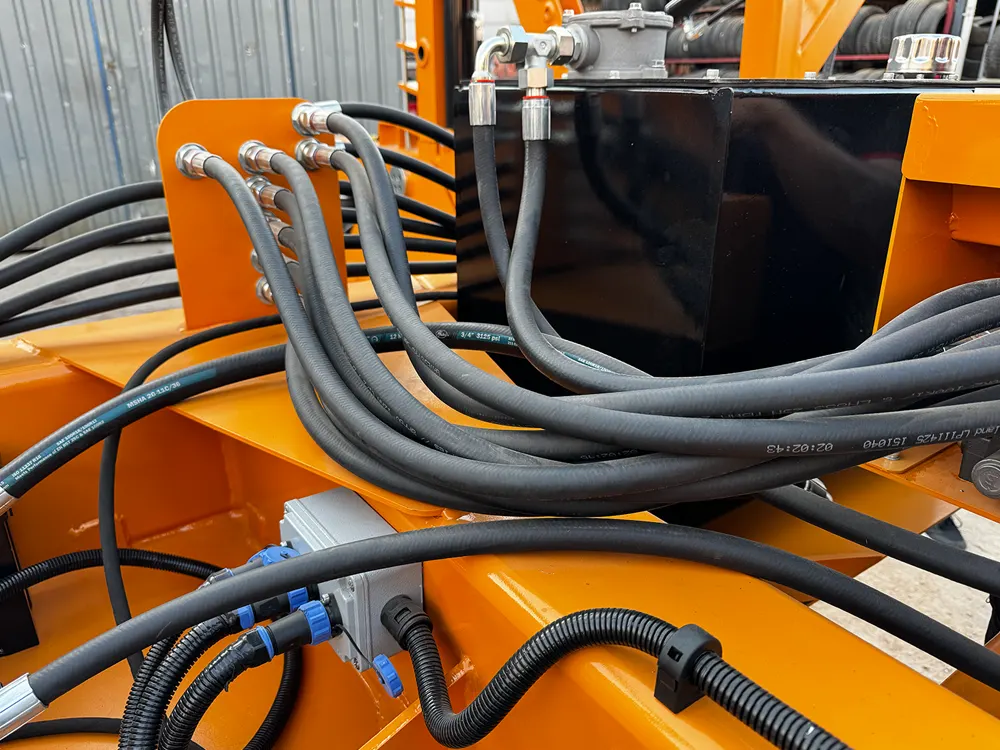

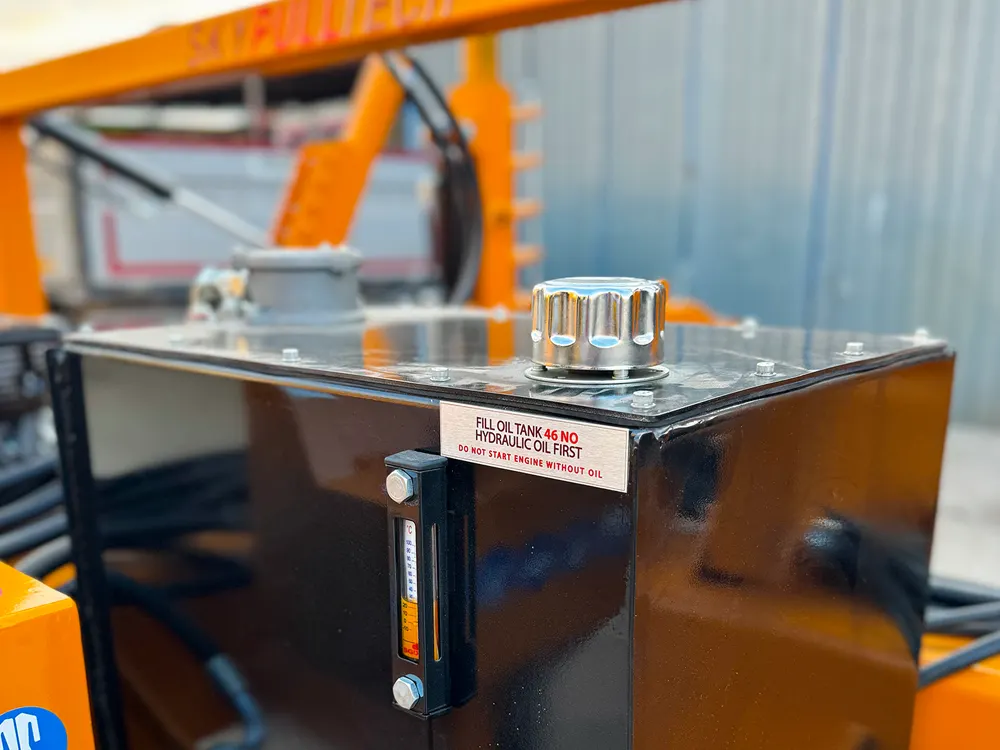

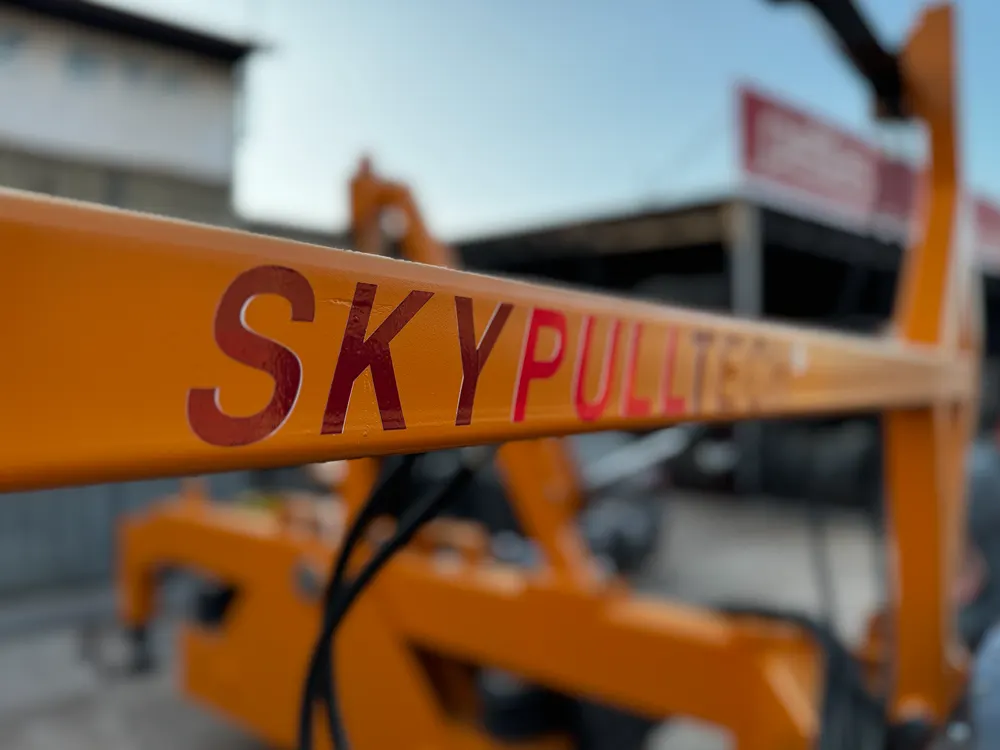

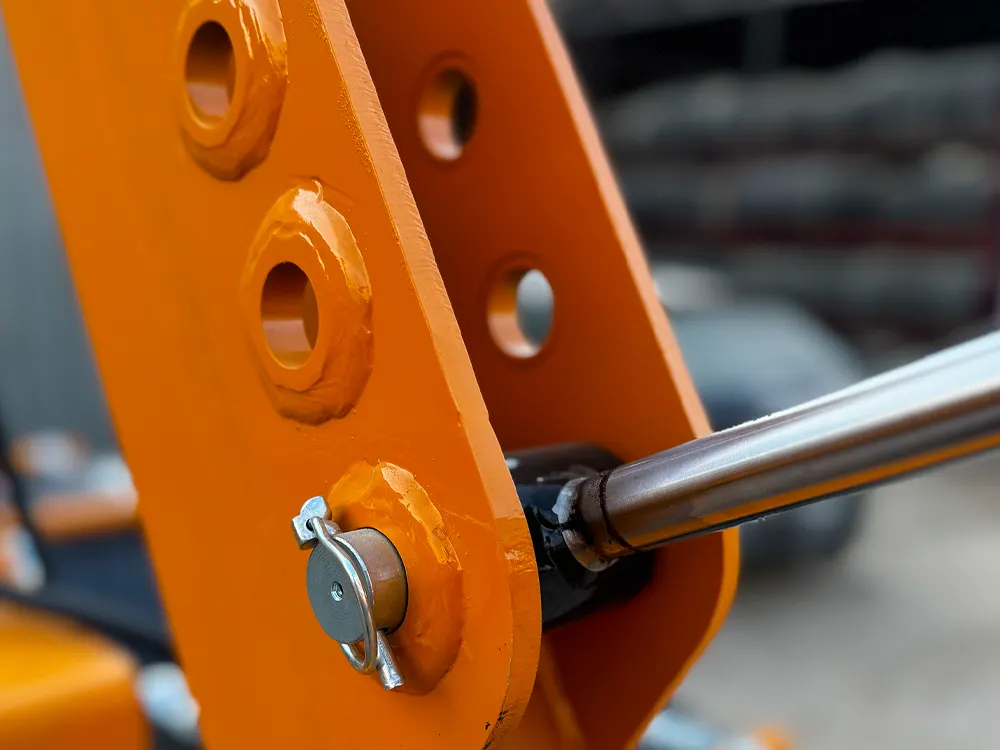

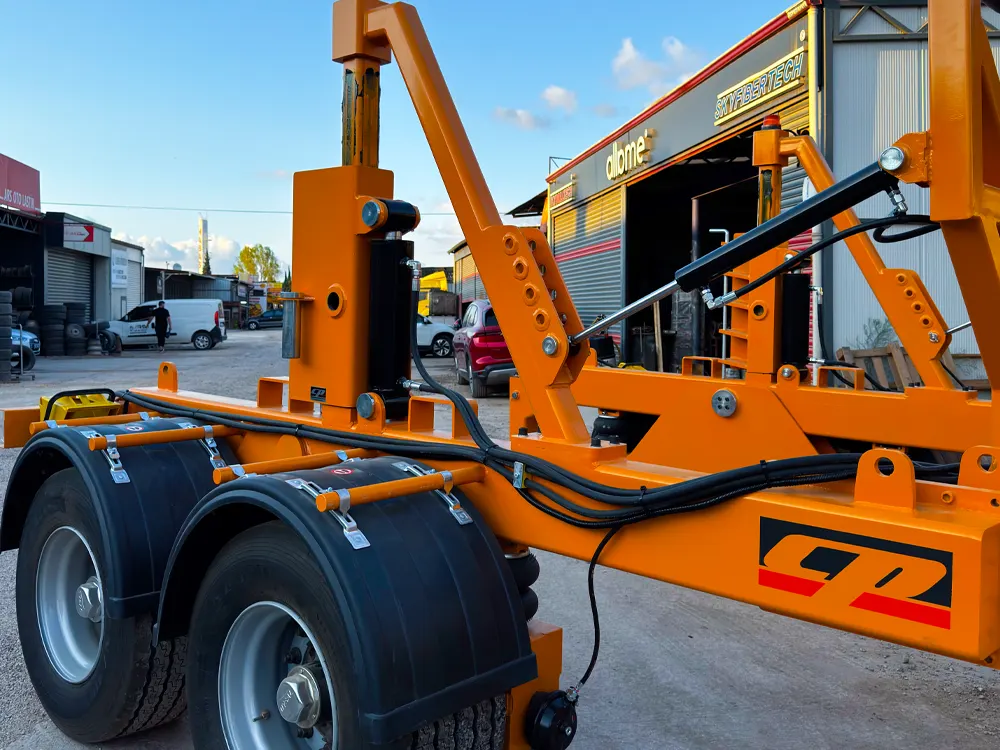

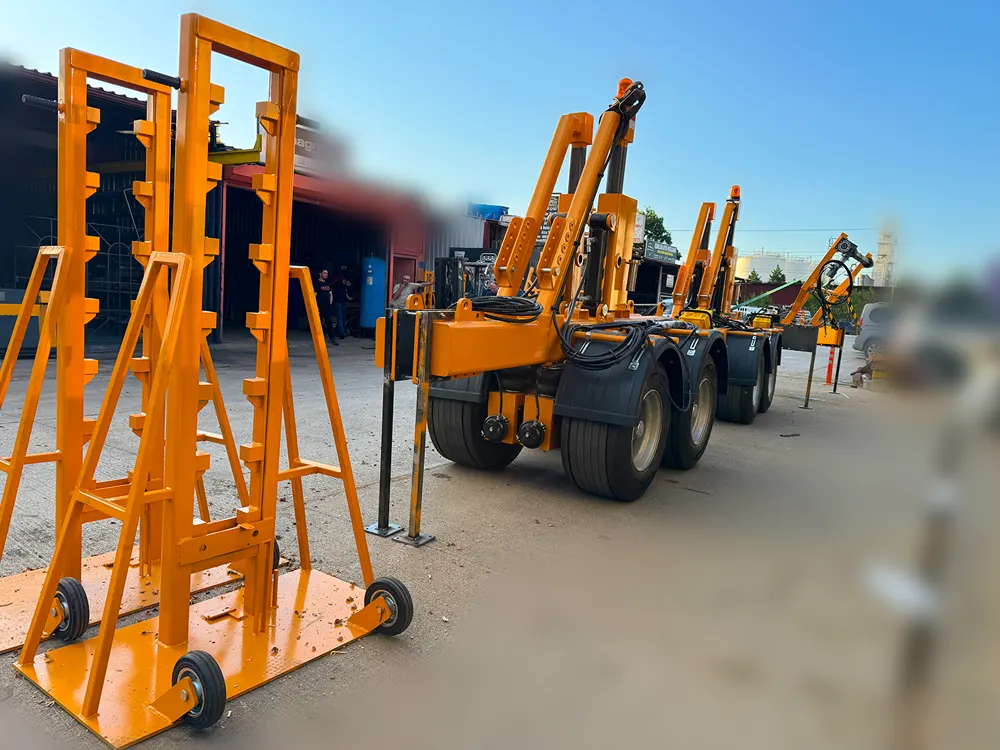

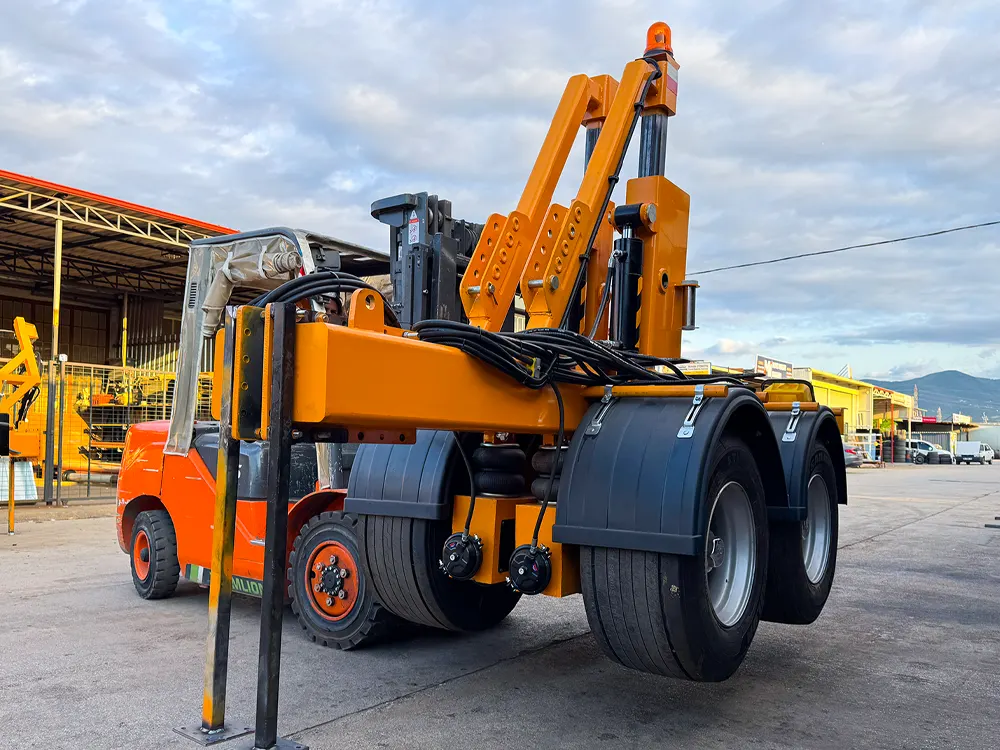

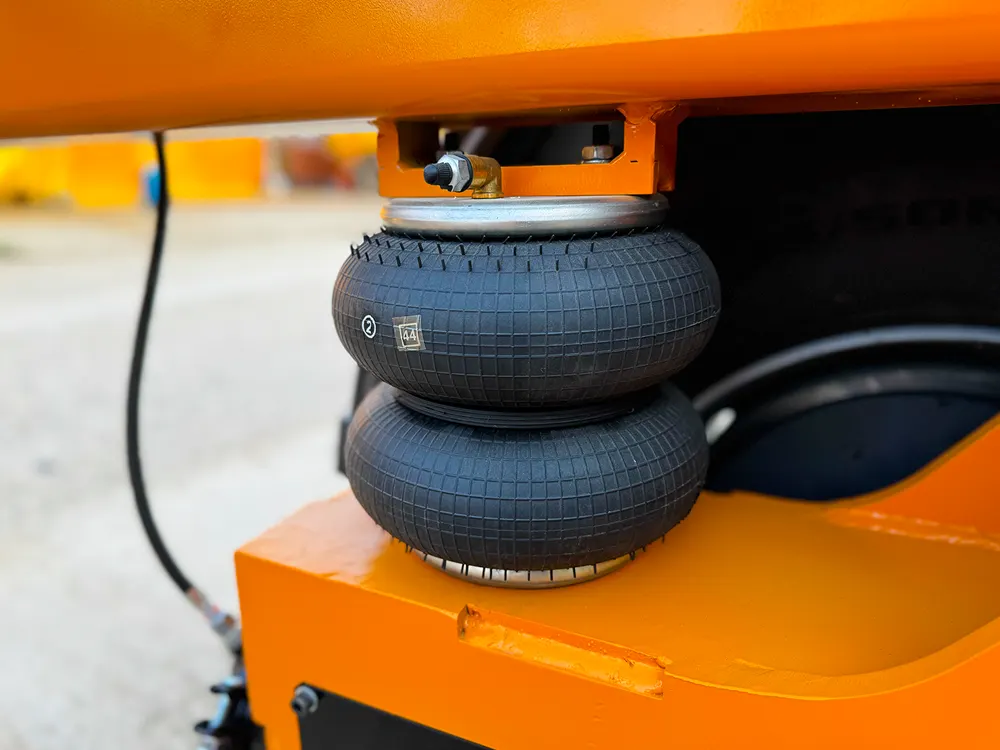

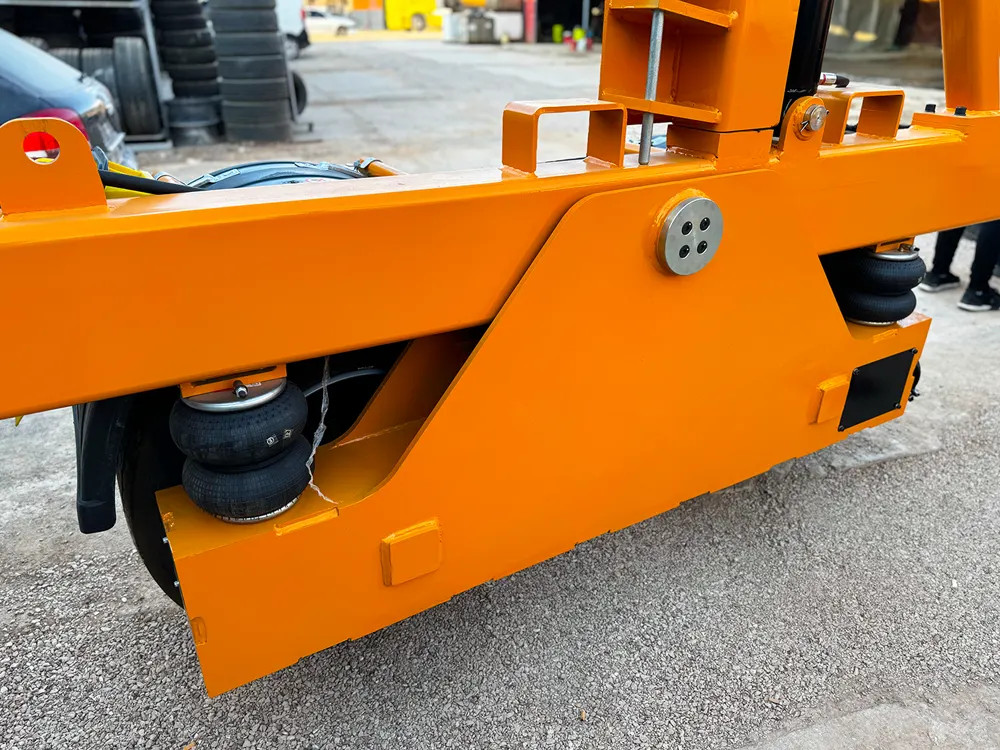

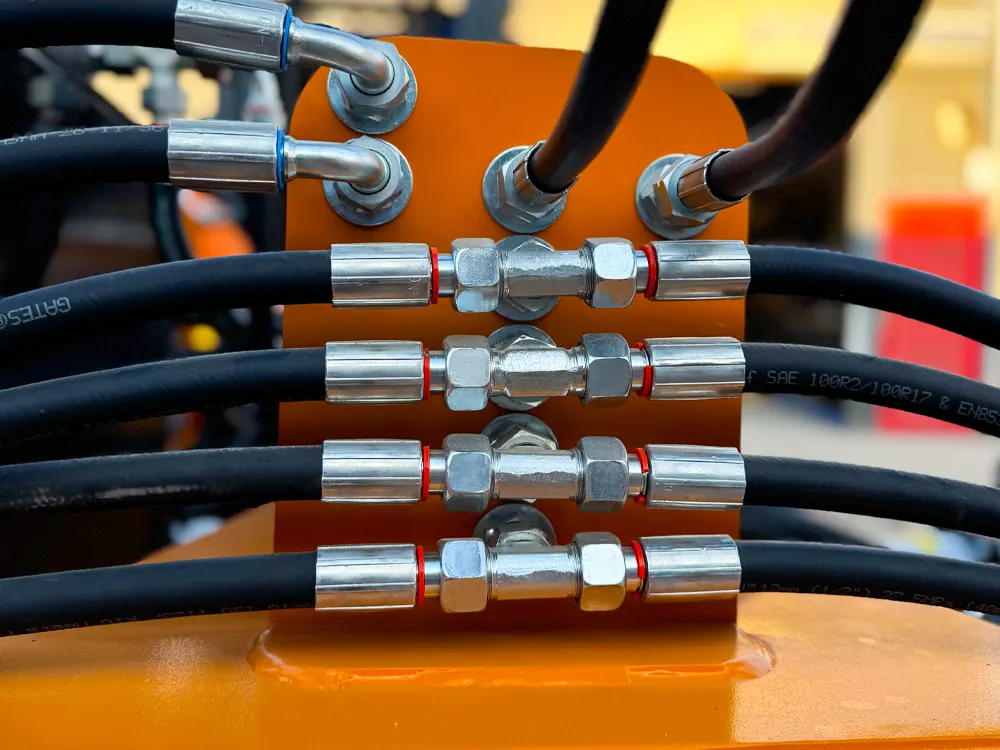

Photo Gallery

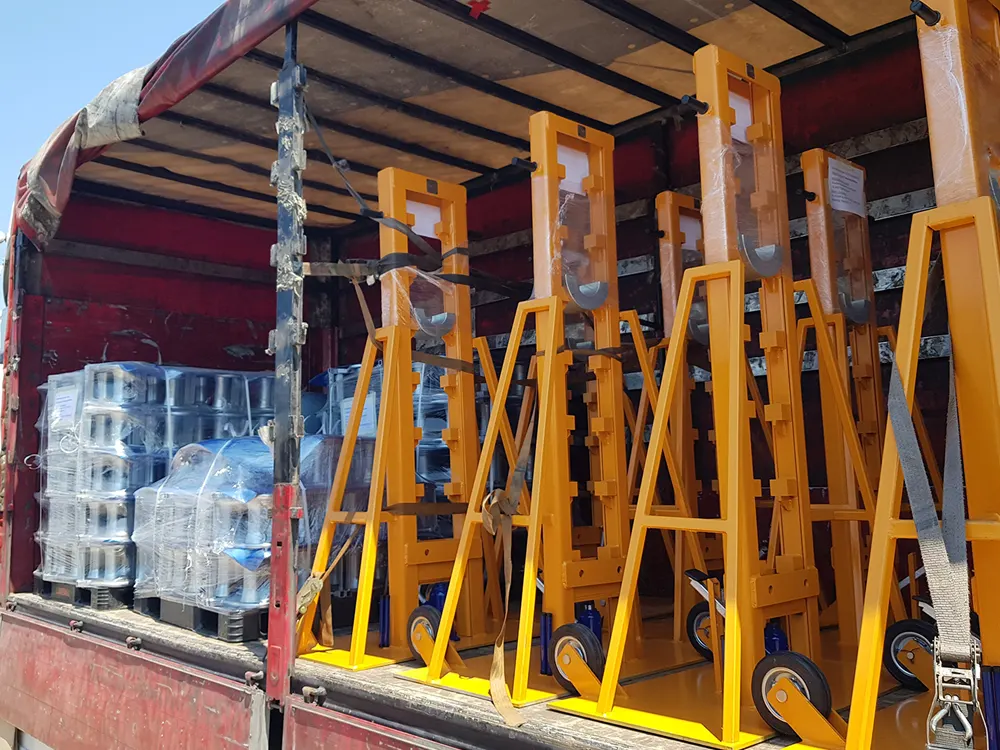

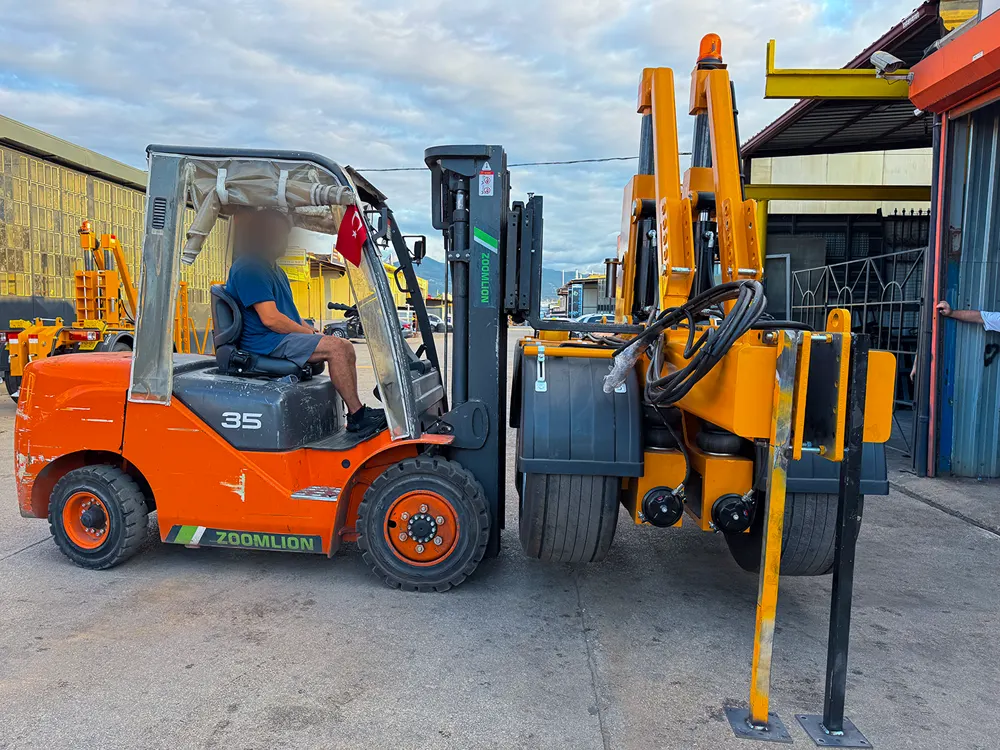

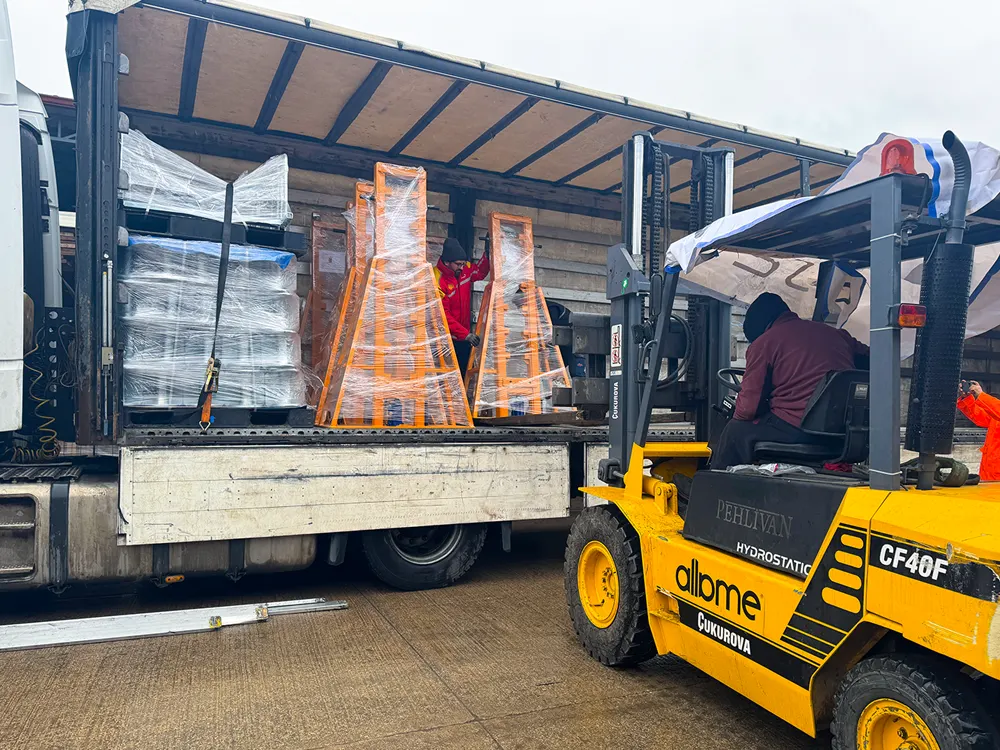

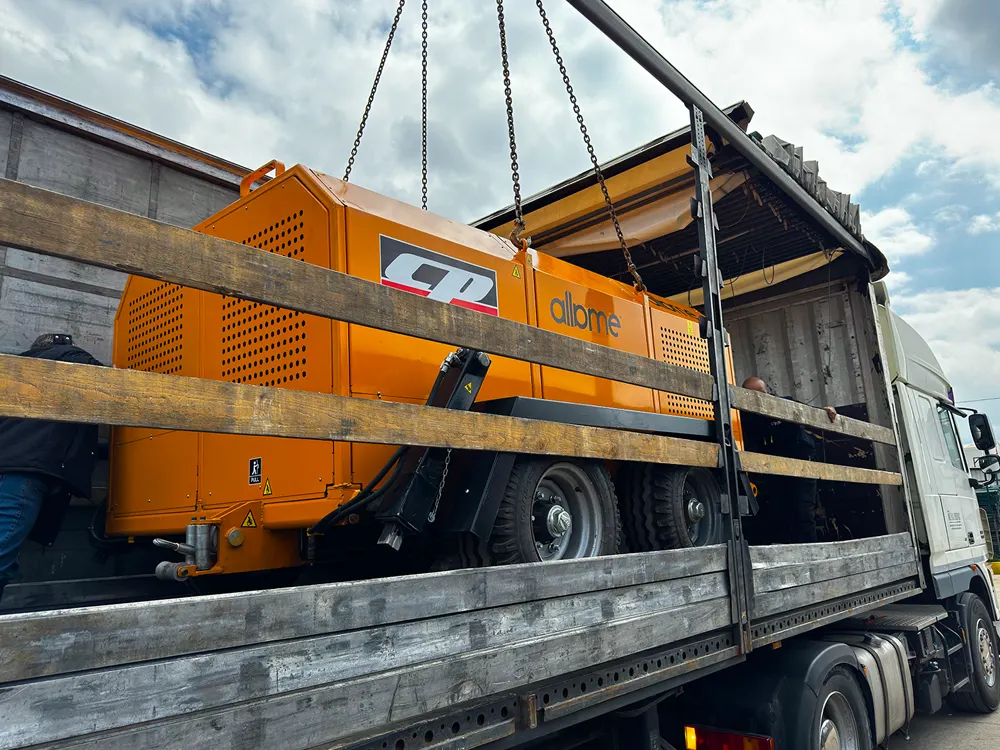

Some Shipping Photos
